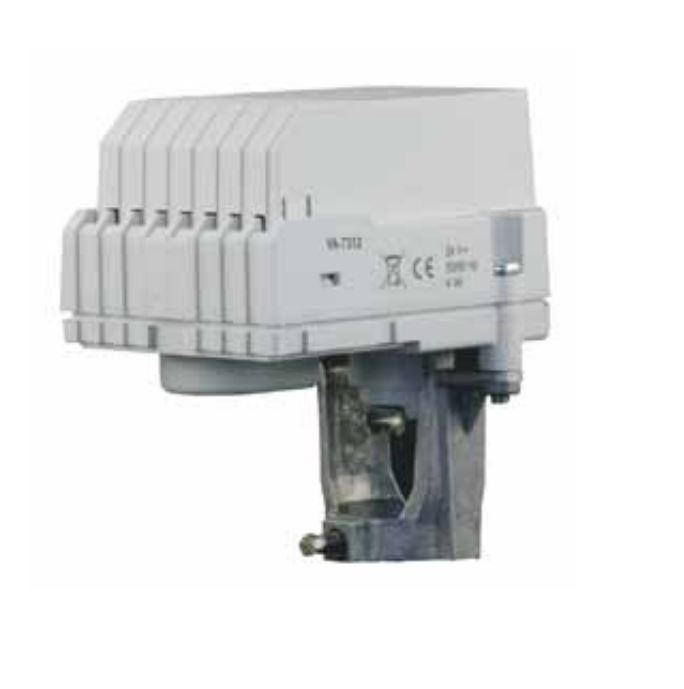

VA-7312-8001 Johnson Controls Linear Actuators for Plant Valves
The VA-7310 Series provides floating or proportional control and can be mounted onto VG7000 globe control valves with slotted stem (VG7xxxxS).
Features
• 24 VAC supply voltage
• Floating and proportional control
• Manual override using a standard 5 mm allen key
• Configurable to Direct and Reverse action
VA-7310
| Ordering
Codes |
Supply
Voltage (50Hz) |
Control | Force | Stroke | Full
Stroke Time |
Protection
Class |
Power
Consumption |
| VA-7310-8001 | 24 VAC | Floating | 150 N ±20% | 8 mm (max. 10 mm) | 60 sec | IP 40 | 2 VA |
| VA-7312-8001 | 24 VAC | Proportional |
